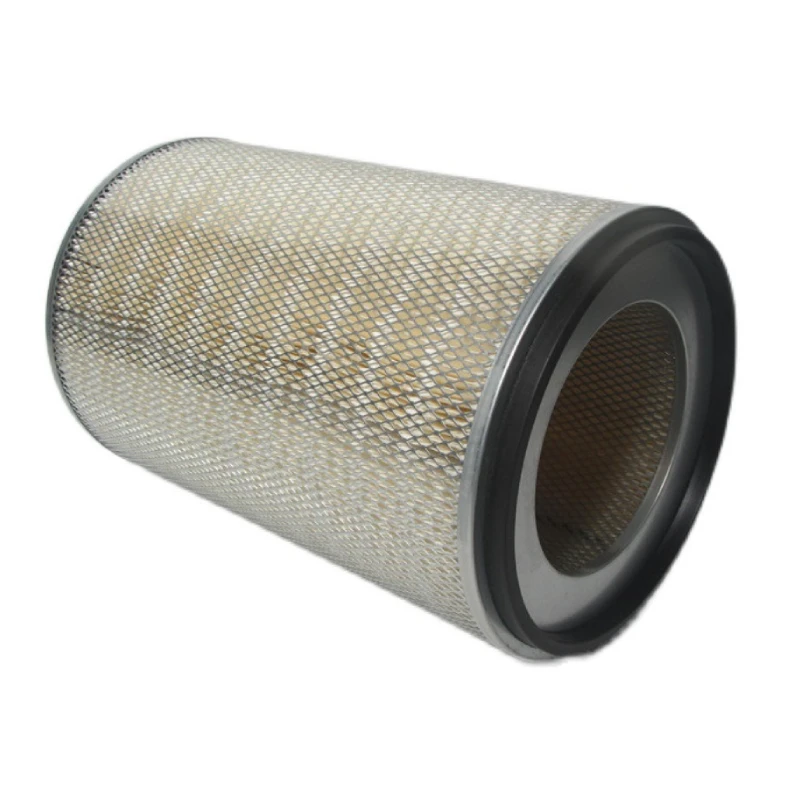

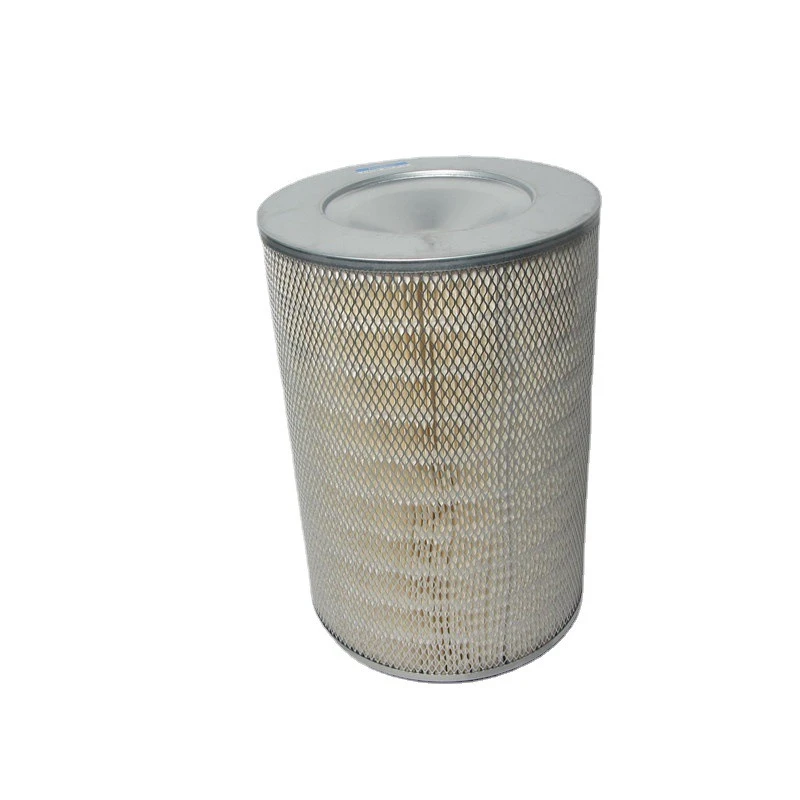

Perkins 26510289 Air Filter | High-Performance OEM Replacement”

Description

Installer tip — flip the filter upright, inspect for crush folds or dented pleats, then seat gently but securely. Don’t tap, don’t blow it out—replace on schedule and log service hours. Over-reusing just sends dust downstream.
Size & fit — it’s large: roughly 406 mm tall, 282 mm OD, 170 mm ID. That’s your key for fit-checking. If the housing matches, this filter drops in and seals solid—just clean the gasket area and seat it well.

Outer Diameter:281.8 mm (11.09 inch)

Inner Diameter:170.8 mm (6.72 inch)

Length:406.4 mm (16.00 inch)

Overall Length:419.1 mm (16.50 inch)

Bolt Hole Diameter:16.76 mm (0.66 inch)

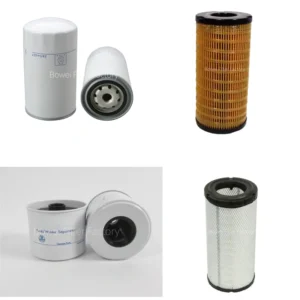

You can find the matching filters for optimal performance:

Oil Filter: 26540244 or 26540238

Fuel Filter: 26560137

These filters are designed to complement the 26510289 air filter, ensuring seamless operation and enhanced engine protection.

This filter set is suitable for Perkins 1306TAG engine

This air filter more applications as below:
