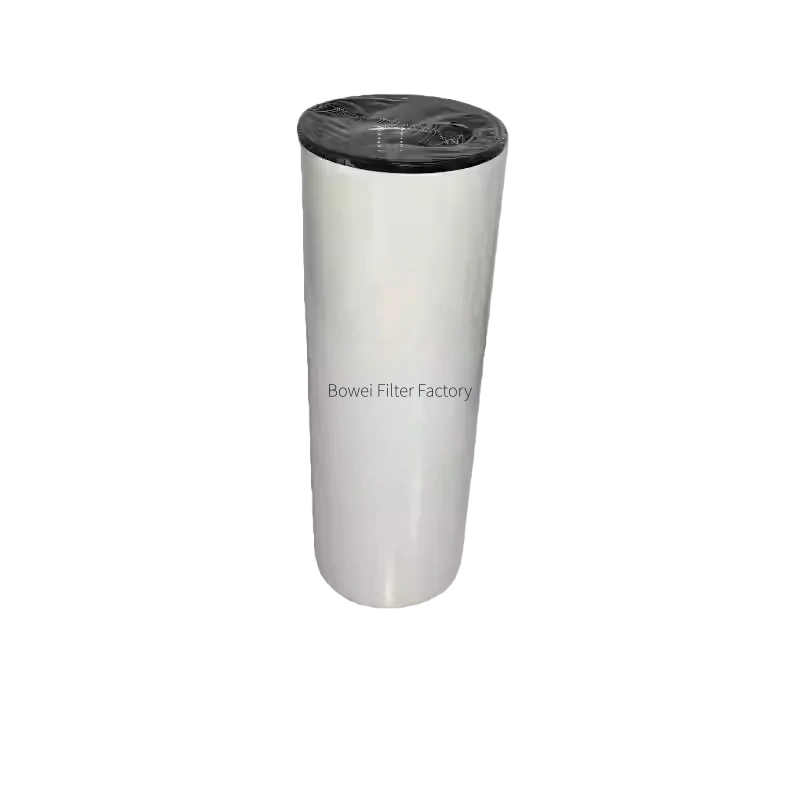

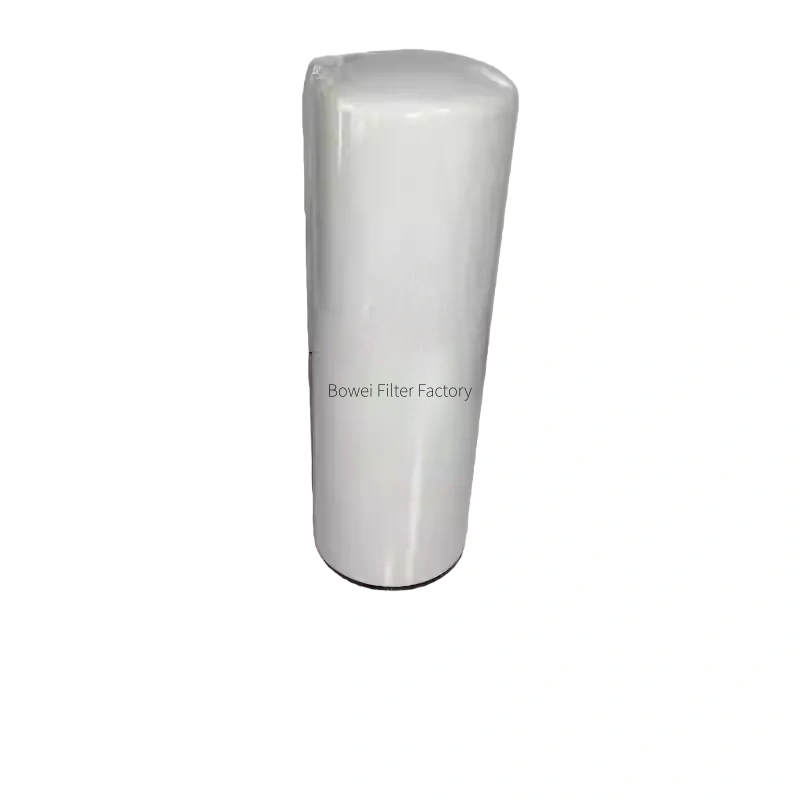

LF9000 Oil Filter
Description
The LF9000 oil filter is designed to provide efficient and reliable engine oil filtration for heavy-duty diesel generator applications.
Its internal filtration structure enhances particle capture efficiency and increases contaminant holding capacity, helping remove impurities from engine oil before they circulate through critical components.
By maintaining clean lubrication oil, the LF9000 oil filter helps reduce internal wear, stabilize oil pressure, and extend overall engine service life.
It is suitable for OEM replacement, routine maintenance, and bulk supply for generator service providers and industrial power applications.
Product Specifications
Filter Type: Oil Filter
Overall Height: 352.5 mm (13.88 in)
Largest Outer Diameter (OD): 118.11 mm (4.65 in)
Gasket OD: 118.87 mm (4.68 in)
Gasket ID: 101.6 mm (4.00 in)
Thread Size: M95 × 2.5-7H
Matched Filters
Matched Filters:
Fuel Filter: FS1040
Air Filter: AF891
These filters are compatible with the Cummins QSX15-G8 Engine.
Other filters used in this engine model include related oil, fuel, and air filtration components designed for complete maintenance solutions.
Cross Reference
PF1281
BD7153
84745XD
Installation & Usage Guide
a. Use a filter wrench to remove the old fuel filter from the engine.
b. Fill the new filter with clean fuel before installation.
c. Install the filter and tighten securely using a filter wrench.
